RESEARCH COMPOUND MICROSCOPES:
The VanGuard 1200CM are ideally suited for clinical, industrial and educational applications
Advanced features, precision optics, and an exceptionally durable design make these instruments
an unparalleled value
• Viewing Head: Seidentopf head (monocular, binocular, or trinocular); 30 degree inclination;
360 degreerotatable head; diopter (-5 to +5) & interpupillary adjustment (55-75mm) mechanisms;
erect imaging;multiple-coated transmission prism system; Phase Contrast Models: centering telescope
• Eyepieces: 10X WideField eyepieces (DIN)
• Nosepiece: Quadruple, reversed, extra-large, ball-bearing nosepiece with wide, knurled grip for
easy operation; features high-grade lubricant and positive stops
• Objectives: Brightfield Models - DIN achromatic or plan-achromatic 4X/0.10, 10X/0.25, 40X/0.65, and 100X/1.25 (Oil)
brightfield objectives. Phase Contrast Models - DIN achromatic 10X/0.25, 20X/0.40, 40X/0.65, and 100X/1.25 (Oil) phase contrast
objectives or DIN plan-achromatic 10X/0.25, 25X/0.40, 40X/0.65, and 100X/1.25 (Oil) phase contrast objectives
• Stage: Graduated, integrated mechanical stage (125x135mm); right-hand coaxial drop-down X-Y controls;
30x70mm movable range
• Focusing Movement: Coaxial, low-position coarse and fine focus controls; graduated to 2 microns per division;
fitted with tension adjustment and safety autostop; 40mm focusing range
• Condenser (Brightfield Models): 1.25 N.A. Abbe condenser with iris diaphragm; easily centered with
spring-loaded knobs, and focusable with rack and pinion substage; swing-in filter holder
• Condenser (Phase Contrast Models): Zernike-style phase contrast condenser with phase annulus rings for
10X, 20X/25X, 40X, & 100X (plus a brightfield setting); iris diaphragm and swing-in filter holder; centerable
condenser mount and easily aligned annulus rings with knurled alignment knobs
• Base: Stable 180x210mm base; fitted with anti-skid rubber feet
• Body: Cast metal, ergonomic body; black hand rests; stain-resistant enamel finish
• Illumination: 6V/20W variable quartz halogen light source; supplied with blue and neutral density filters
(Brightfield Models); blue, green, and neutral density filters (Phase Models)
• Dimensions: 210mm(L) x 180mm(W) x 380mm(H); 7.0 kg. [Binocular Models]
• Warranty: 5 year warranty on manufacturing defects
| MODEL |
HEAD |
TYPE |
OBJECTIVE MAG. |
OBJECTIVE TYPE |
ILLUM. |
PRICE |
| 1210CM |
Monocular |
Brightfield |
4X,10X,40X,100X (oil) |
Achromatic (DIN) |
20W Halogen |
$609.00 |
| 1211CM |
Monocular |
Brightfield |
4X,10X,40X,100X (oil) |
Plan Achromatic (DIN) |
20W Halogen |
$1025.00 |
| 1220CM |
Binocular |
Brightfield |
4X,10X,40X,100X (oil) |
Achromatic (DIN) |
20W Halogen |
$910.00 |
| 1220CM |
Binocular |
Brightfield |
4X,10X,40X,100X (oil) |
Plan Achromatic (DIN) |
20W Halogen |
$1325.00 |
| 1230CM |
Trinocular |
Brightfield |
4X,10X,40X,100X (oil) |
Achromatic (DIN) |
20W Halogen |
$999.00 |
| 1231CM |
Trinocular |
Brightfield |
4X,10X,40X,100X (oil) |
Plan Achromatic (DIN) |
20W Halogen |
$1400.00 |
| 1212CM |
Monocular |
Phase Contrast |
10X,20X,40X,100X (oil) |
Achromatic (DIN) |
20W Halogen |
$1139.00 |
| 1213CM |
Monocular |
Phase Contrast |
10X,20X,40X,100X (oil) |
Plan Achromatic (DIN) |
20W Halogen |
$1550.00 |
| 1222CM |
Binocular |
Phase Contrast |
10X,20X,40X,100X (oil) |
Achromatic (DIN) |
20W Halogen |
$1429.00 |
| 1223CM |
Binocular |
Phase Contrast |
10X,20X,40X,100X (oil) |
Plan Achromatic (DIN) |
20W Halogen |
$1869.00 |
| 1232CM |
Trinocular |
Phase Contrast |
10X,20X,40X,100X (oil) |
Achromatic (DIN) |
20W Halogen |
$1509.00 |
| 1233CM |
Trinocular |
Phase Contrast |
10X,20X,40X,100X (oil) |
Plan Achromatic (DIN) |
20W Halogen |
$1969.00 |
|

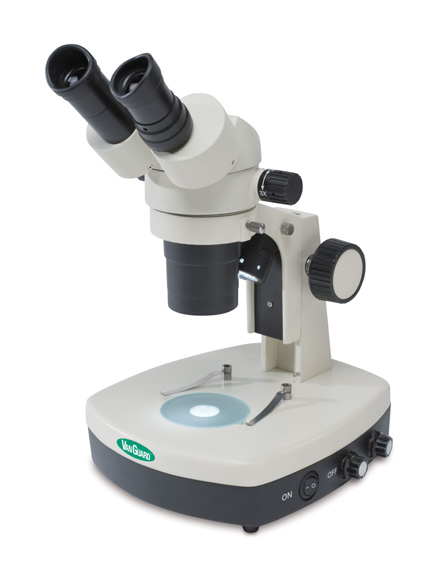

STEREO MICROSCOPES:
The VanGuard 1200S Stereo Microscopes are ideal for the clinical, industrial, or
educational setting
• The precision optics produce high-resolution,
three-dimensional images
• Viewing Head: Binocular; 45 degree inclination; 360 degree rotatable head;
diopter (-5 to +5) & interpupillary adjustment (55-77mm) mechanisms; large field
of view and a 97mm long working distance
• Eyepieces: 10X WideField eyepieces (DIN)
• Stereo Optics: Dual power (1X & 2X, 1X & 3X, 2X & 4X, and 1X & 4X models
available), revolving turret objectives; parfocal and parcentered
• Focusing Movement: Coaxial, rack & pinion focusing controls; tension control mechanism to
prevent drifting; slip-clutch mechanism for gear protection
• Base: Stable 220x165mm base; fitted with anti-skid rubber feet
• Stage Plate: Frosted glass stage plate and black/white reversible stage plate
• Body: Cast metal, ergonomic body; stain-resistant enamel finish
• Illumination Switch: 3-Way illumination switch allows the upper and lower illumination
to be on separately or simultaneously
• Upper Illumination: 6V/15W variable quartz halogen light source
• Lower Illumination: 6V/15W variable quartz halogen light (Models 1252SH,
1253SH, 1254SH, & 1255SH); 5W fluorescent light source (Models 1262SF,
1263SF, 1264SF, & 1265SF)
• Working Distance: 97mm
• Dimensions: 220mm (L) x 165mm (W) x 360mm (H)
• Weight: 4.5 kg
• Warranty: 5 year warranty on manufacturing defects
| MODEL |
HEAD |
OBJECTIVES |
UPPER LAMP |
LOWER LAMP |
FIELD OF VIEW |
PRICE |
| 1252SH |
Binocular |
1X & 2X |
15W Variable Halogen |
15W Variable Halogen |
18.5mm (10X) 9mm (20X) |
$469.00 |
| 1253SH |
Binocular |
1X & 3X |
15W Variable Halogen |
15W Variable Halogen |
18.5mm (10X) 6.5mm (30X) |
$469.00 |
| 1254SH |
Binocular |
2X & 4X |
15W Variable Halogen |
15W Variable Halogen |
9mm (10X) 5.5mm (40X) |
$469.00 |
| 1255SH |
Binocular |
1X & 4X |
15W Variable Halogen |
15W Variable Halogen |
18.5mm (10X) 5.5mm (40X) |
$469.00 |
| 1262SF |
Binocular |
1X & 2X |
15W Variable Halogen |
5W Fluorescent |
18.5mm (10X) 9mm (20X) |
$469.00 |
| 1263SF |
Binocular |
1X & 3X |
15W Variable Halogen |
5W Fluorescent |
18.5mm (10X) 6.5mm (30X) |
$469.00 |
| 1264SF |
Binocular |
2X & 4X |
15W Variable Halogen |
5W Fluorescent |
9mm (10X) 5.5mm (40X) |
$469.00 |
| 1265SF |
Binocular |
1X & 4X |
18.5W Variable Halogen |
5W Fluorescent |
18.5mm (10X) 5.5mm (40X) |
$469.00 |
|
