PLANKTON SAMPLING EQUIPMENT

Calibrated Line LaMotte Plankton Nets Lugols Iodine Sedgewick Rafter Counting Chambers
Calibrated Line LaMotte Plankton
Nets
Lugols Iodine Sedgewick Rafter
Counting Chambers
 Plankton Nets Student Plankton Nets Wisconsin Style Periphyton Sampler
Simple Plankton Nets Simple Student Plankton Nets Wisconsin Style Plankton Nets Periphyton Sampler




























simple net

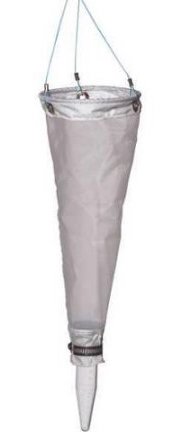

SIMPLE PLANKTON NET:
>

Nitex mesh, with quadruple stitched seams. Reinforced cod-end aperture, HD collar with grommets.

Net Includes:

• Plankton Net: Nitex mesh, with quadruple stitched seams, reinforced cod-end aperture, HD collar with grommets; mouth to length ratios: 1:3, 1:4, or 1:5

• Stainless Steel Ring and Three Point Bridle: ring diameters (cm): 30 or 50; stainless steel ring with cross-bar and towing eye also available

• PVC Collecting Bucket: two piece PVC design with stainless steel fasteners;

Replacement Collecting Bucket for 30 cm Top Diameter Plankton Tow Net ......$Inquire
Replacement Collecting Bucket for 50 cm Top Diameter Plankton Tow Net ......$Inquire

Sorry, but until the Canadian $ stabilizes, please inqure for pricing on the Simple Plankton Nets.

Mouth Diameter x Length
Mesh (Microns) 30 cm x 90 cm 30 cm x 120 cm 50 cm x 150 cm 50 cm x 200 cm
Code Price Code Price Code Price Code Price

20

20-30/90

$

20-30/120

$

20-50/150

$

20-50/200

$

50

50-30/90

$

50-30/120

$

50-50/150

$

50-50/200

$

80

80-30/90

$

80-30/120

$

80-50/150

$

80-50/200

$

100

100-30/90

$

100-30/120

$

100-50/150

$

100-50/200

$

150

150-30/90

$

150-30/120

$

150-50/150

$

150-50/200

$

200

200-30/90

$

200-30/120

$

200-50/150

$

200-50/200

$

250

250-30/90

$

250-30/120

$

250-50/150

$

250-50/200

$

350

350-30/90

$

350-30/120

$

350-50/150

$

350-50/200

$

500

500-30/90

$

500-30/120

$

500-50/150

$

500-50/200

$

750

750-30/90

$

750-30/120

$

750-50/150

$

750-50/200

$

1000

1000-30/90

$

1000-30/120

$

1000-50/150

$

1000-50/200

$

Most plankton nets, as seen above, are made to order, so please allow approximately 4-6 weeks for delivery.
Other mesh sizes are also available, please inquire.

wisconsin net

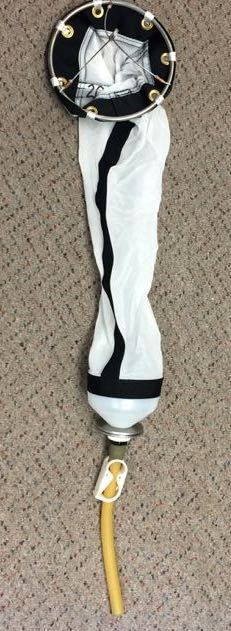

WISCONSIN STYLE (HIGH EFFICIENCY) PLANKTON NET:

Available in 30 cm diameter x 90 cm sizes as seen above. Supplied with double stainless steel ring (top ring is 20 cm diameter). Inquire for pricing.

Net Includes:

-Plankton Net: Nitex mesh, with quadruple stitched seams, reinforced cod-end aperture, HD collar with grommets; mouth to length ratio: 1:3

-Stainless Steel Ring and Three Point Bridle: ring diameters (cm): 20/30 cm

-PVC Collecting Bucket: Two piece PVC design with stainless steel fasteners

Most plankton nets, as seen above, are made to order, so please allow approximately 4-6 weeks for delivery. Other mesh sizes are also available, please inquire..

lamotte plankton net

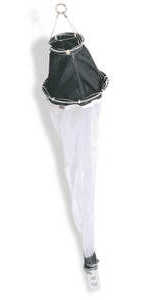

LAMOTTE PLANKTON TOW NETS:

Cone-shaped nets of #10 mesh (153 micron) nylon cloth. Minute plankton are collected and can be observed in the removable, clear conical graduated tube attached at the end of the net. Two tubes are provided. The net mouth is braced by a sturdy stainless steel ring and harness.

#1063: 5" Diameter (12.5cm), 15" length, 153 Micron Mesh $131.00
#0023: 12" Diameter (30cm), 38" length, 153 Micron Mesh $226.00

simple student plankton net
SIMPLE STUDENT PLANKTON NETS:

15 cm diameter x 60 cm length. Stainless steel ring with bridle. Clear PVC poly end bottle, with drain assembly and stainless steel weight. Inquire for custom mesh sizes.

#PN20: 15cm Diameter, 60cm length, 20 Micron Mesh $145.00
#PN64: 15cm Diameter, 60cm length, 64 Micron Mesh $142.00
#PN80: 15cm Diameter, 60cm length, 80 Micron Mesh $139.00
#PN150: 15cm Diameter, 60cm length, 150 Micron Mesh $139.00

calibrated line
CALIBRATED LINE & WEIGHT:

This 20 meter, braided, stretch-resistant line has a brass spring clip for easy attachment to samplers, w discs, plankton nets or sounding leads. The line wraps conveniently around an ethafoam block which prevents accidental loss.

#1065: 20 Meter Calibrated Line $62.00
#1064-G: 20 Meter Line with Weight $83.00
#1068: Sounding Weight Only $39.00

sedgewick rafter slide

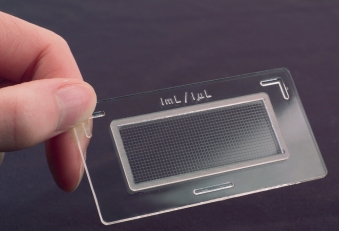

PLASTIC - SEDGEWICK RAFTER COUNTING CHAMBERS:

Plastic Sedgewick Rafter Chamber: The cell holds 100 cubic millimetres of liquid 1 millimetre deep over an area of 50 x 20 millimeters. The plastic base is divided into 1 millimetre squares. A cover glass traps liquid to the correct depth. By observing the liquid through a low magnification microscope objects contained in each cubic millimeter can be identified and counted. Includes cover glass.

#15084: Plastic Sedgewick Rafter, with Grid $49.00

sedgewick rafter slide

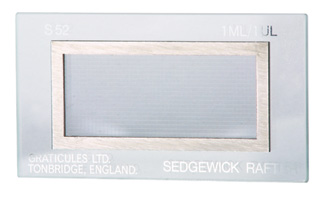

GLASS - SEDGEWICK RAFTER COUNTING CHAMBERS:

Glass Sedgewick Rafter Chamber: 1" x 3" glass base with a 45 mm x 20 mm x 1 mm (volume is 1.0 ml). Comes complete with cover glass.

#M38: Glass Sedgewick Rafter, without Grid $75.00
#S52: Glass Sedgewick Rafter, with Grid $245.00

lugols

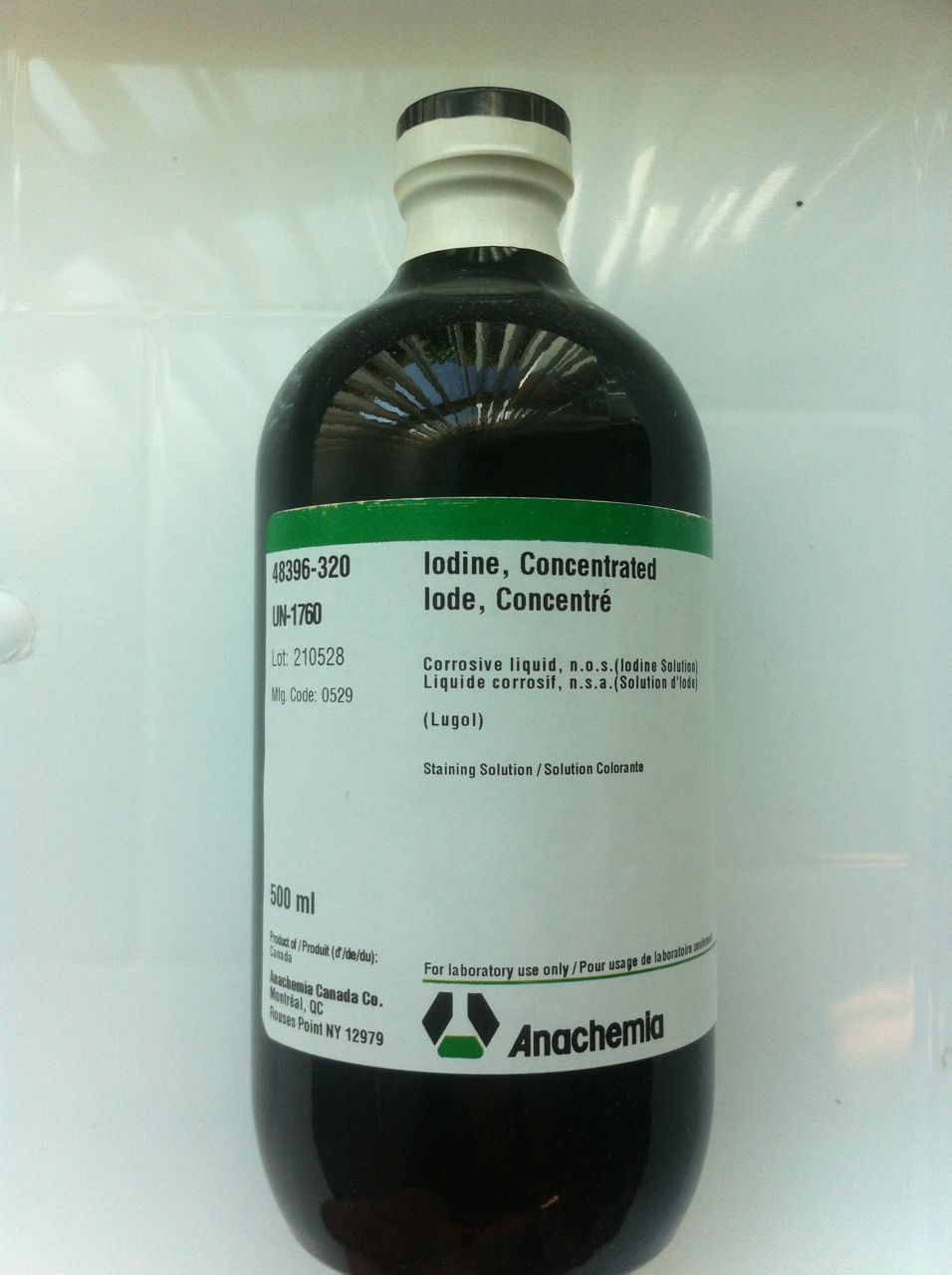

LUGOLS IODINE:

Stain and sample fixative

#C10603: Lugols Iodine, 500 ml $63.00

periphyton sampler

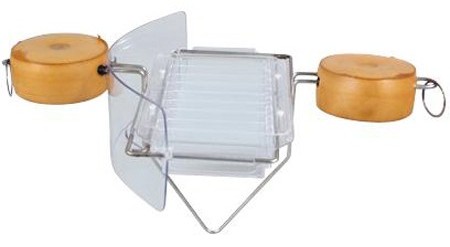

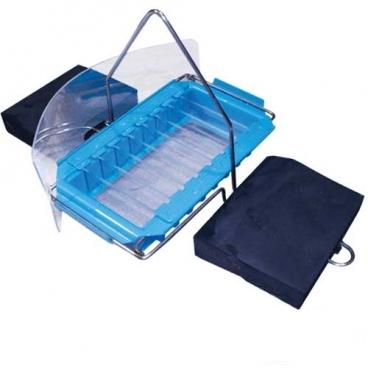

PERIPHYTON SAMPLER:

Ideal for sampling algae or zebra mussels. This artificial substrate sampler can be placed in a stream, reservoir or lake and is secured by means of a line or anchor. It is left in place for two weeks, in which time algae grow on the glass slides. At the end of the sampling period, the slides are removed and the algae and other growths can be examined for identification and counting. Glass microscope slides are held firmly in place in a removable slide tray. The rugged slide tray holds up to 8 slides. Two polyurethane floats keep the sampler self-righting and allow it to float inconspicuously. Measures 14-3/4" x 7-3/4" x 6-1/2", complete with 16 slides.

Discontinued when stock runs out

#156-D30: Periphyton Sampler Discontinued
