MARISOURCE Vertical Incubators, Components and Accessories

hatching jar

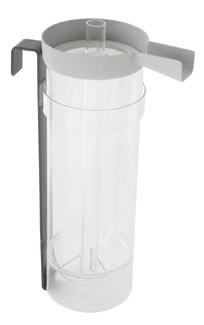

HATCHING JAR (McDONALD TYPE):

It is a clear, high-impact, all-plastic egg hatching system. Simply direct about one gpm of water (depending on the weight of the eggs) into the center. The eggs will be uniformly rotated. The fish hatching jar comes complete with a screen to let the fish swim out. Use it for trout, salmon hybrid striped bass, catfish, tilapia, and many others. Height 18″, diameter 6.25″, volume 23 oz. for approximately 100,000 trout eggs.

JAR HANGER: The all plastic hatching jar hanger allows jars to be used without a bench or separate stand. Accepts up to 1.5″ hanging lip.

#J30: Hatching Jar $99.00
#J6: Replacement Tube $19.00
#J8: Replacement Screen $13.50
#JH: Hatching Jar Hanger $17.95

adult board

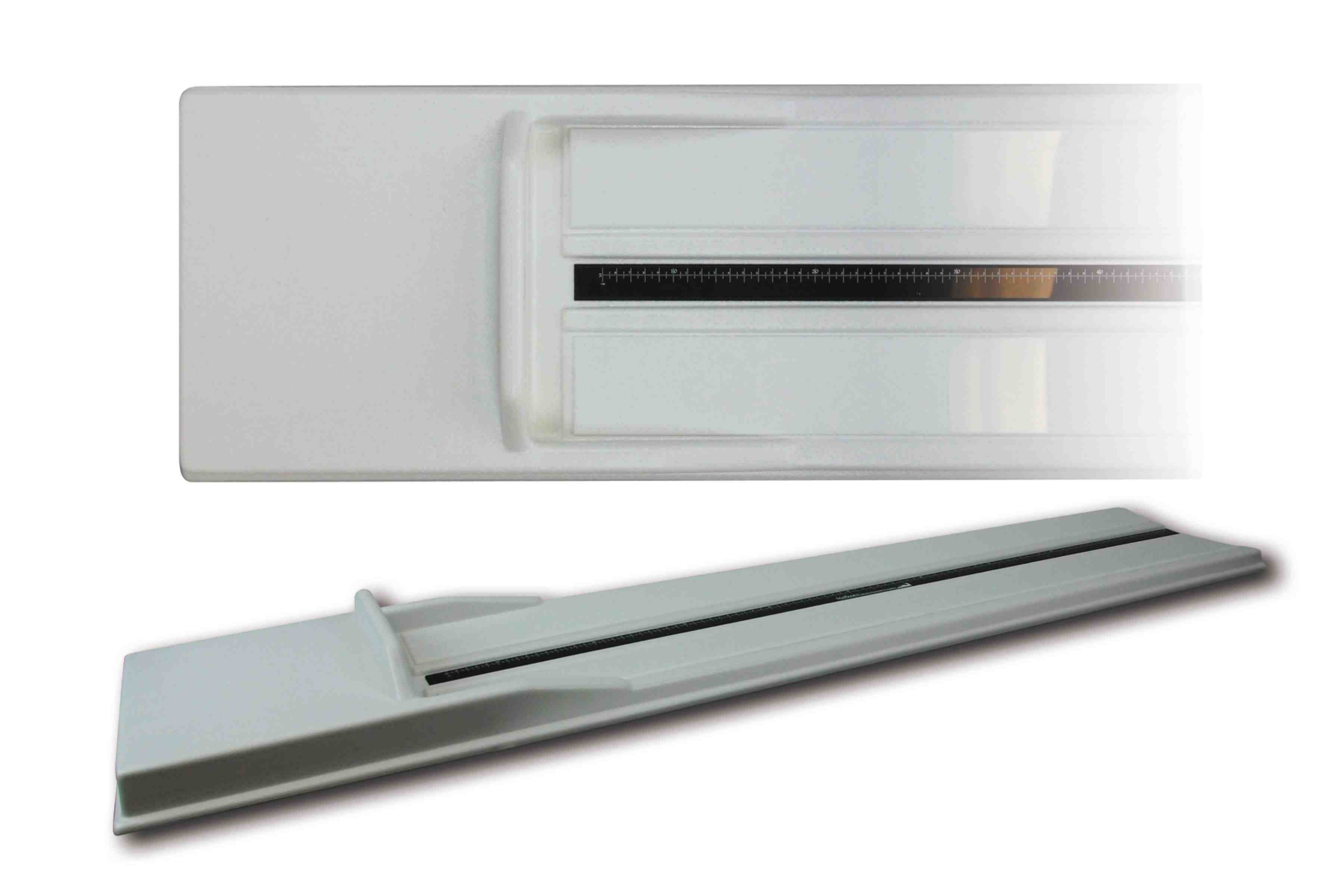

ADULT FISH MEASURING BOARD

• Smooth non-porous surface
• 100 cm measuring surface
• Tapered toward the center to hold fish
• Header panel for clipboard
• Lightweight easy to clean plastic
• Tape is embedded in the center
• Tape can be removed and replaced

#5641: Adult Fish Measuring Board $169.00

60 cm board

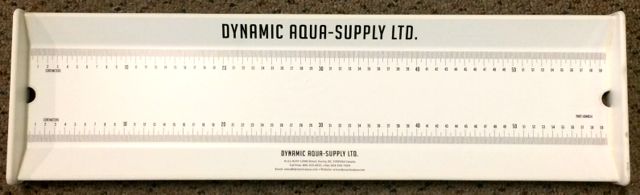

FISH MEASURING BOARD (60 cm):

Easy on the fish and easy to use. Made entirely of ABS with permanent markings in inches with 1/10 inch divisions and 0.5 centimeters. Overall length is 24" (60 cm) It is white in color with blue markings.

#FMB2: 60 cm Measuring Board $82.00

30 cm board

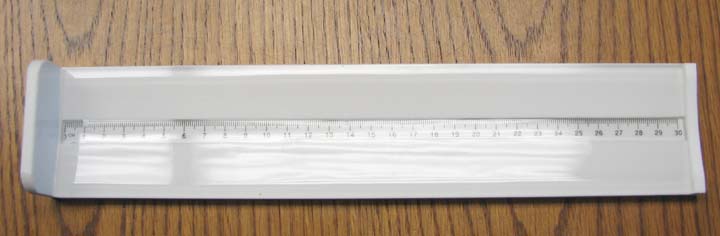

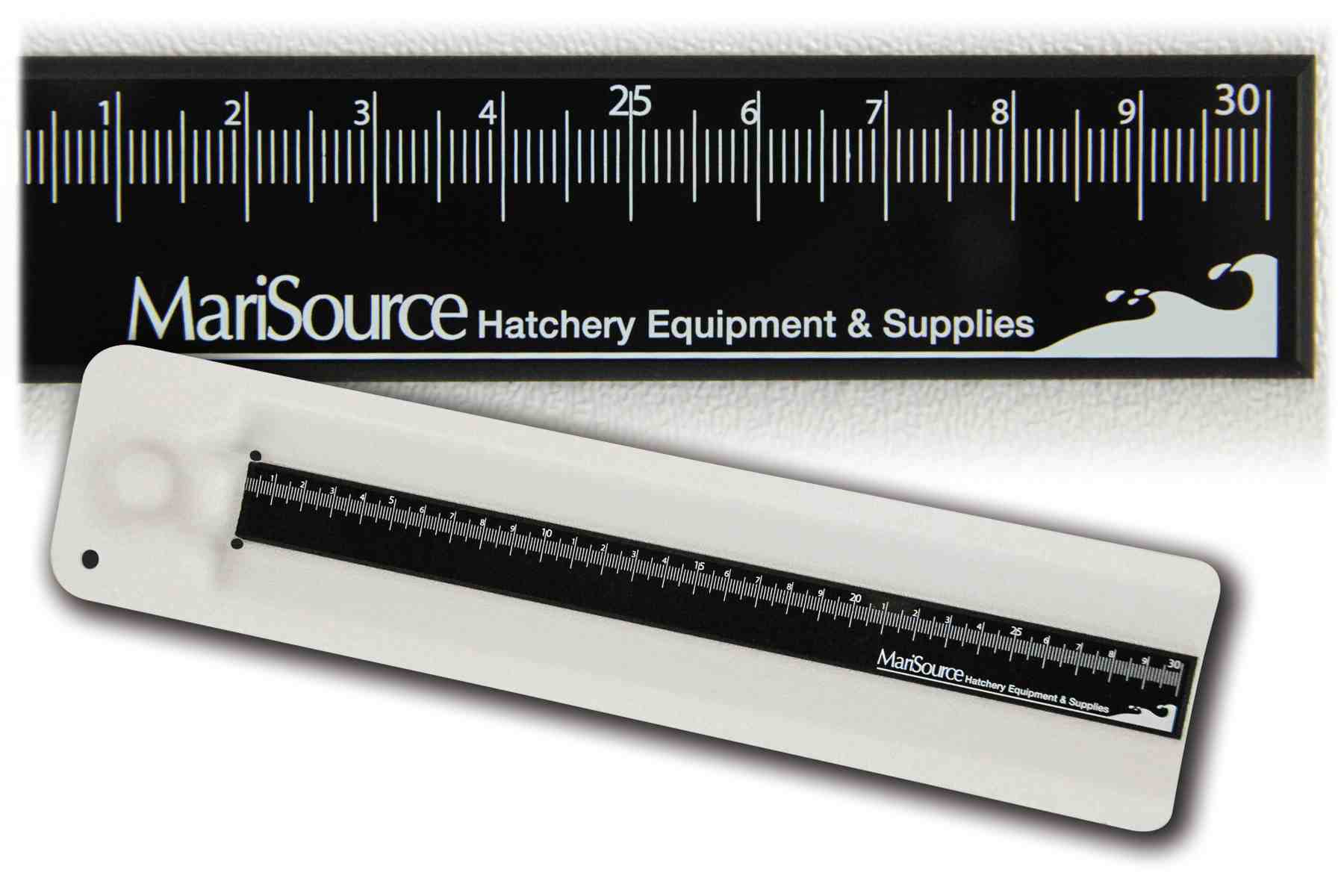

JUVENILE FISH (SMOLT) MEASURING BOARD (30 cm):

Made of heavy-duty white plastic, this board measures fish up to 30 cm in length. The white plastic base is concave to aid in holding the fish in place. The white base has a 30 cm ruler embedded and a coating of clear plastic to cover and protect the tape ensuring long life.

#SB30: Smolt Measuring Board $64.00

36 cm board

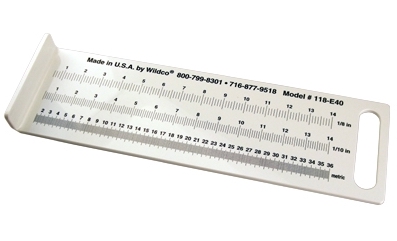

FISH MEASURING BOARD (36 cm):

This white PVC board is accurate, dependable, rugged and lightweight. It has three measuring scales printed on the board to enable you to take accurate measurements:

• 0 to 14 inches, 1/8-inch divisions
• 0 to 14 inches, 1/10-inch divisions
• 0 to 36 cm, 1 mm divisions

Wash with detergent or soap, no abrasives or alcohol.

#118-E40: 36 cm Measuring Board $59.00

75 cm board

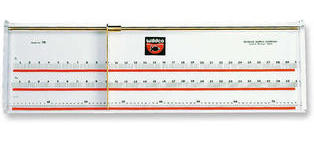

DELUXE FISH MEASURING BOARD (75 cm):

Do you need to make quick, accurate fish measurements in the field or laboratory? This sturdy, two-color apparatus is constructed of acrylic plastic and brass with a clear overlay with scales printed on the underside for protection from wear. The brass indicator arm slides easily on a brass bearing over the brass rod. 30" long, 9" wide, with a lip on 3 sides. In both metric and English scales. Packaged in custom box with slide unassembled to eliminate damage in shipping. Ship wt: 10 lbs. Three measuring scales:

• 0 to 30 inches, 1/8-inch divisions
• 0 to 30 inches, 1/10-inch divisions
• 0 to 750 mm, 1 mm divisions

Wash with detergent or soap, no abrasives or alcohol.

#118-B30: 75 cm Measuring Board $229.00

data ruler

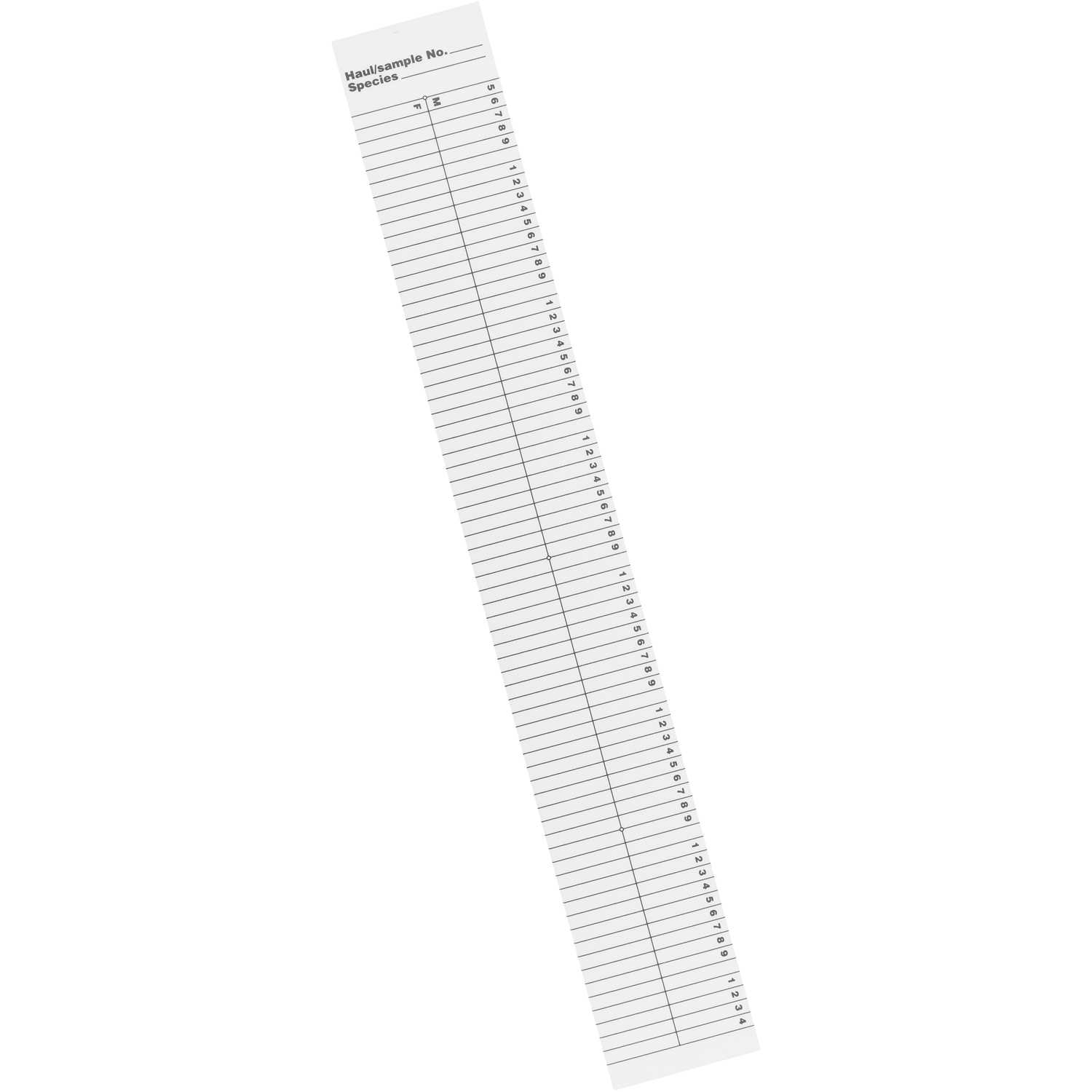

FISH DATA RULER:

New from the manufacturers of of "Rite in the Rain". Printed on durable Styrene. Pencil and erase surface. Centimeter ruled. 10.7 cm x 110 cm. Great for packing into the field. Can be rolled up.

#FR1: Fish Data Ruler $22.95

egg picker
FISH EGG PICKER:

• Made of lightweight, non-toxic plastic
• Adjustable opening and tension
• Long narrow tips for extra reach
• Overall length is 12-5/8″ (32cm)
• Impervious to chemicals, easy to disinfect

#5665: Fish Egg Picker $11.25

egg counter
FISH EGG COUNTER:

• Made of lightweight, non-toxic plastic
• Full counter holds 100 eggs
• Equipped with specially designed indentations
• Impervious to chemicals, easy to disinfect

#5650: Fish Egg Counter $21.00

spawning knife
MARISOURCE SPAWNING KNIFE:

• Designed specifically for extracting fish eggs
• Light green in color
• Blade may be replaced when dull

#5638: Marisource Spawning Knife $2.75
#5638CS: Marisource Spawning Knife, Box/24 $59.00
#5668-10: Replacement Blades, Pkg/10 $5.75
#5668-100: Replacement Blades, Pkg/100 $44.00

spawning knife
ZAK SPAWNING KNIFE:

• Designed specifically for extracting fish eggs
• Orange in color
• Slightly blunter tip than the Marisource Knife

#ZAK1: Zak Spawning Knife $2.90
#ZAK25: Zak Spawning Knife, Pkg/25 $69.00

dressing knife
FIELD DRESSING KNIFE:

• Vinyl sheath with belt loop
• Chrome plated
• Blade Guard

#R-06: Field Dressing Knife $9.95
#R-06BL: Replacement Blade $2.45

biomat
BIO-MAT (BIO-BUNN) HATCHING SUBSTRATE:

Use of hatching substrate during hatching gives higher starting weight, easier start-feeding and better survival. The substrate is delivered in sets of two mats, precut into 40 x 40 cm squares. The Bio-Mat can also be utilized as fry shelter in start-feeding tanks. By placing one of the mats with the spikes towards the bottom of the tank, all the fry will take shelter underneath.

*Please note this is a seasonal item and may require some lead time to ensure delivery by the required date.

#BIOMAT: Biomat, Set of 2 Mats $59.00

grader
FLOATING FISH GRADERS:

Many species of fish can be graded much faster with these graders because they feature both side and bottom bars. These popular, time tested, fish graders have been used to grade just about every species of fish. The aluminum frame is Styrofoam filled for floatation. Interchangeable grader racks are made from 3/16" hard aluminum rods. Grader spacing is by 64th inch (0.39 mm). Order grader frame and grader racks separately.

Grader Spacings: 8/64 - 10/64 - 12/64 - 13/64 - 14/64 - 15/64 - 16/64 - 17/64 - 18/64 - 19/64 - 20/64 - 21/64 - 22/64 - 23/64 - 25/64 - 27/64 - 28/64 - 29/64 - 30/64 - 31/64 - 32/64 - 33/64 - 36/64 - 37/64 - 38/64 - 40/64 - 42/64 - 44/64 - 46/64 - 48/64 - 50/64 - 52/64 - 54/64 - 58/64 - 62/64 - 66/64 - 70/64 - 74/64 - 78/64 - 84/64 - 88/64 - 94/64 - 96/64

#G2: Grade Frame, Small, 19″ x 23″ x 10″ $253.00
#G2B: Grade Rack, Small $199.00
#G4: Grade Frame, Large, 23″ x 39″ x 10″ $409.00
#G4B: Grade Rack, Large $279.00

grader

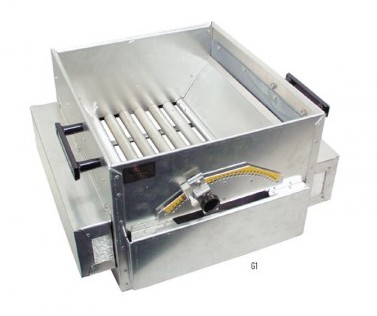

FLOATING ADJUSTABLE FISH GRADER:

Here are two easy to use floating fish graders built to last a lifetime. The sturdy aluminum construction will stand up to rough handling and tough fish. The grader floats at the right depth and the large diameter grader bars pass undersized fish damage free. Size adjustments are quick and accurate from a single lever with locking handle position. In seconds, you may select any of 30 gradations between 1/4 in. (6.4mm) and 1-1/8 in. (29mm) for the G1 and 50 gradations between 5/32 in. (4mm) and 1-3/8 in. (35mm) for the G1B. Grader bars are 1-1/16 in. (27mm) diameter. G1 Inside dimensions - 14 in. L x 15 in. W x 11.5 in. D; Depth to bars ¨ 7.5 in. G1B Inside dimensions - 28 in. L x 21 in. W x 16 in. D; Depth to bars - 11 in. Made in USA.

#G1: Small Floating Adjustable Grader $729.00
#G1B: Large Floating Adjustable Grader $1125.00

tagging gun

tagging needle

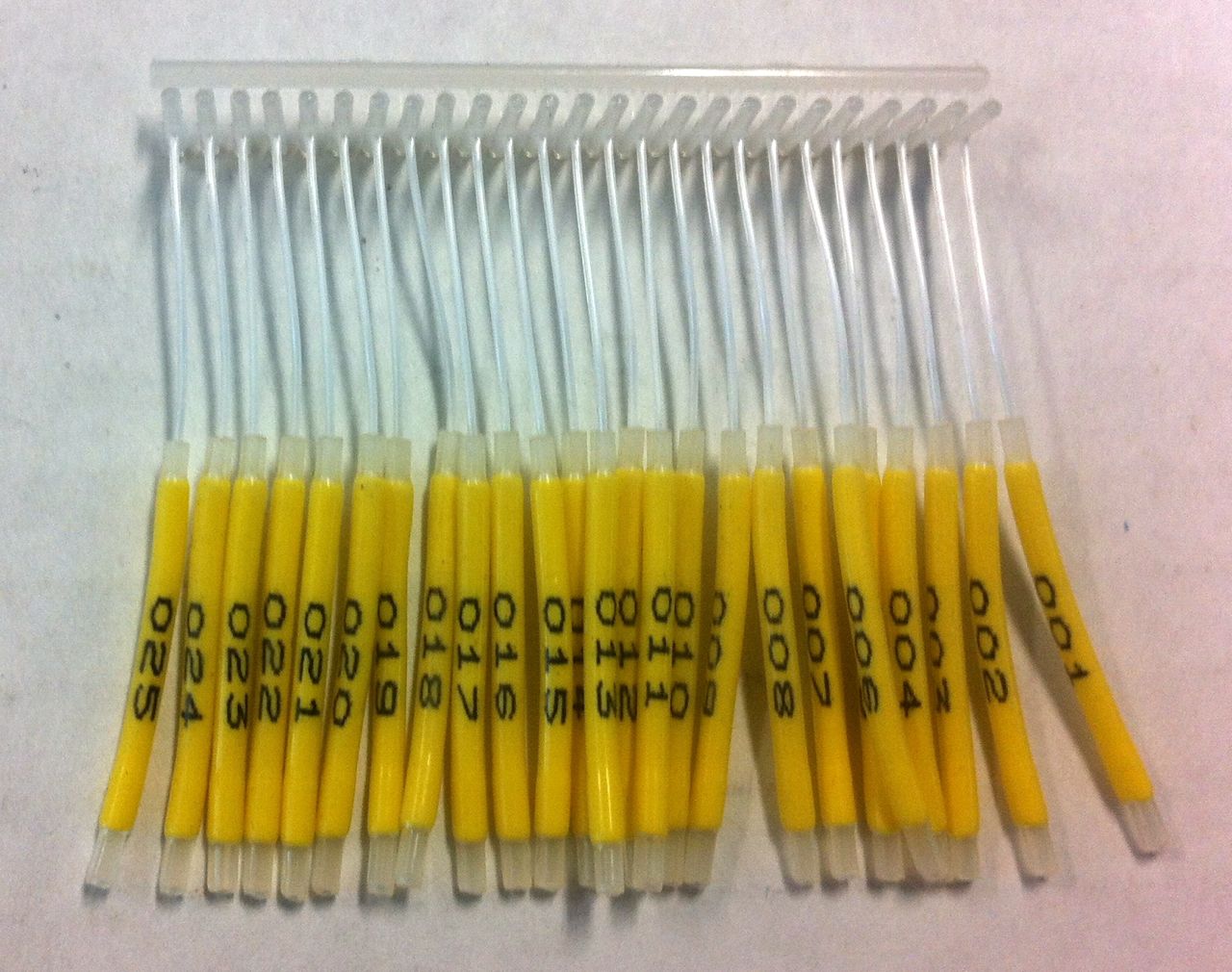

tags
TAGGING GUN:

The tagging gun uses a needle to insert tags to a depth of 5/8". T-Bar anchor tags in both flag and number styles. The flag tag is 2.5" long with a 3/16" x 3/8" flag (available in 7 colors; light blue, blue, yellow, red, orange, dark green, and clear). The number style is similar without the flag. Numbered tags are orange with black numbers. Available in 1-100, 1-500 or 1-1000. Colored tags sold in lots of 100 or 1000.

#TG2: Tagging Gun $39.00
#TG1N: Replacement Needle $6.75
#FFT9: Clear Tags, Pkg/100 $1.65
#FFT1: Light Blue Tags, Pkg/100 $1.85
#FFT3: Yellow Tags, Pkg/100 $1.85
#FFT4: Red Tags, Pkg/100 $1.85
#FFT5: Pink Tags, Pkg/100 $1.85
#FFT6: Orange Tags, Pkg/100 $1.85
#FFT7: Green Tags, Pkg/100 $1.85
#FFT10: Blue Tags, Pkg/100 $1.85
#FTN: Numbered Tags, Pkg/100 Inquire

switch
WATER LEVEL SWITCH:

This water alarm switch mounts inside your tank for an accurate, easy to clean, wave resistant level switch. Small pumps and alarms may be operated directly off its internal mercury switch rated at 1.8 amps at 115V AC, 2 amps @ 24V DC and 5 amps at 12V DC. Clear plastic, 14′ leads, UL approved. Part No. ST-8 is normally open at low water and closes circuit when the water rises. The ST-7 closes contact when the water drops.

#ST7: Water Level Switch $84.00
#ST8: Water Level Switch $84.00

flow meter
WATER FLOW METER:

These clamp on flow meters are easy to install. Just drill an 11/16″ hole in a horizontal section of your pipe then clamp it on with the two stainless steel clamps provided. Easily disassembled with its O-ring for cleaning. Mount vertically on horizontal pipe at least 10 times the pipe inside diameter from the nearest elbow or pump and 5 times the diameter on the outlet side. For use with freshwater. Dual scale, gpm & lpm.

Part #: Pipe Size Flow Range gpm/lpm Price
FM1: 1″ 5-35 / 20-130 $66.00
FM1A: 1.5″ 20-80 / 80-300 $66.00
FM2: 2″ 30-140 / 120-550 $66.00
FM2A: 2.5″ 40-200 / 160-750 $66.00
FM3: 3″ 80-350 / 300-1300 $66.00
FM4: 4″ 4150-600 / 600-2200 $66.00

mat
SANITIZING FOOT MAT:

For entrances to hatcheries, farm sites or anywhere that control of contamination is required. Flexible rubber fingers scrub the boot or shoe soles while bending to immerse them in a disinfecting solution. Size: 24″ x 32″ (60 x 80) cm or Size: 32″ x 39″ (80 x 98) cm. . Small mat holds up to 1 gallon (3.8 litres) of sanitizer.

#RM2: Sanitizing Foot Mat, 24″ x 32″ $82.00
#RM3: Sanitizing Foot Mat, 32″ x 39″ $137.00
