COLORIMETERS & TURBIDITY METERS
• LaMotte SMART2 Colorimeter
• SMARTLink Software
• SMART Reagents
• LaMotte Turbidity Meter
• Other Turbidity Testing Equipment
|
SMART2 Colorimeter
• Over 50 pre-programmed water analysis factors
• Automatic wavelength selection
• Friendly menu-driven operation with simple six-button keypad
• Accepts COD vials and cuvettes
The user-friendly SMART2 Colorimeter is the direct reading colorimeter for complete on-site water analyses.
All pre-programmed tests can be run on this compact instrument and each test features automatic wavelength selection.
The entire multi-LED optical system is embedded in the light chamber and optimized for LaMotte test reagent systems.
This enables the analyst to simply select the test and put in the sample with reagent. The microprocessor, which selects
the wavelength, also allows the user to load up to 10 tests for analyzing custom reagent systems.
Specifications:
|
Light Source:
|
LED/filter setup at 430nm, 520nm, 570nm, 630nm
|
|
Detector:
|
Photodiode
|
|
Display:
|
122x32 LCD, 16x4 line graphics display
|
|
Range:
|
0-125%T |
|
Resolution:
|
1% FS
|
|
Accuracy:
|
2% FS
|
|
CE Mark:
|
Yes
|
|
Sample Cell:
|
25 mm round cell, 10 mm square cuvette, 16mm COD tubes
|
|
Power:
|
9V or AC adapter
|
|
Battery Life:
|
500 tests
|
|
Datalogging:
|
RS-232, time and date stamped
|
|
Calibration:
|
Factory set
|
|
Keypad:
|
6-button membrane switch
|
|
Size:
|
15 x 8 x 5.5 cm; 6 x 3.25 x 2.5 inches
|
|
Weight:
|
900 g (2 lbs.)
|
• Colorimetric Testing Tips
• SMART2 Colorimeter - Owners Manual
| #1919: |
SMART2 Colorimeter - 120V/60Hz |
$950.00 |
| #1919-EX2: |
SMART2 Colorimeter - 220V/50Hz |
$950.00 |
| #1919-GCS150: |
Small Field Carrying Case |
$115.00 |
| #1919-GCS440: |
Large Field Carrying Case |
$193.00 |
| #1920: |

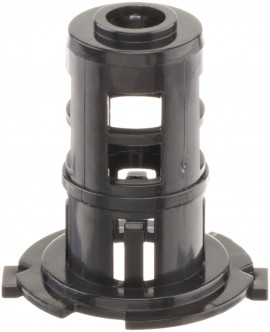

COD Adapter |
$39.00 |
| #1921: |
UDV Adapter |
$39.00 |
| #0290-6: |

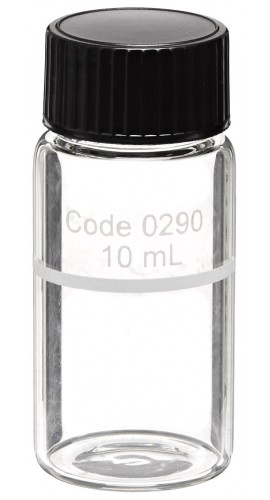

Replacement Colorimeter Tubes, Pkg of 6 |
$27.25 |
|
|
SMARTLink PROGRAM & INTERFACE CABLE
The SMART2 Colorimeter may be interfaced with any DOS based computer program by using the LaMotte SMARTLink
Program and Interface Cable. The program stores customer information in a database and records test
data to an ASCII delimited file. It can also be used to download data stored in the colorimeter datalogger.
| #1912-CD: |
SMARTLink 2 Program, CD Rom |
$209.00 |
|
|
SMART REAGENTS
The SMART2 Colorimeter is complemented by easy to use reagent systems. Choose the
desired test factors from the list below. Several packaging options are available
for field use, making your SMART2 Colorimeter a "field laboratory". For over 79 years,
LaMotte has produced the highest quality reagents for colorimetric analysis. We use ACS raw materials
to manufacture reagent systems that have high reproducibility. We design our reagent systems to overcome
test interferences so results are fast and dependable.
|
|
| Test Factor |
Range (ppm) |
Test Method |
# of Reagents |
# of Tests |
Order Code |
Price |
| Aluminum |
0-0.3 |
Eriochrome Cyanine R |
(4) |
50 |
3641-SC |
$71.00 |
| Ammonia Nitrogen |
0-1.0 |
Salicylate |
(3) |
25 |
3659-01-SC |
$47.00 |
| Ammonia Nitrogen |
0-3.0 |
Nesslerization |
(2) |
50 |
3642-SC |
$49.00 |
| Bromine |
0-10 |
DPD Tablets |
(2) |
100 |
3643-SC |
$53.00 |
| Chlorine |
0-4.0 |
DPD Tablets |
(2) |
100 |
3643-SC |
$53.00 |
| Iodine |
0-10 |
DPD Tablets |
(2) |
100 |
3643-SC |
$53.00 |
| Chlorine Dioxide |
0-7.0 |
DPD Tablet/Glycine |
(2) |
50 |
3644-SC |
$31.00 |
| COD, Low |
0-150 |
Digestion (mercury free) |
-- |
25 |
0072-SC |
$75.00 |
| COD, Standard |
0-1500 |
Digestion (mercury free) |
-- |
25 |
0073-SC |
$75.00 |
| Copper |
0-5.0 |
Diethyldithiocarbamate |
(1) |
100 |
3646-SC |
$20.00 |
| Copper |
0-3.0 |
Bicinchoninic Acid |
(1) |
50 |
3640-SC |
$29.00 |
| Cyanide |
0-0.5 |
Pyridine-Barbituric Acid |
(5) |
50 |
3660-SC |
$98.00 |
| Cyanuric Acid |
5-200 |
Melamine |
(1) |
50 |
3661-SC |
40.00 |
| Fluoride |
0-2.0 |
SPADNS |
(2) |
50 |
3647-SC |
$48.00 |
| Hydrazine |
0-1.0 |
P-dimethylaminobenzaldehyde |
(2) |
50 |
3656-SC |
53.00 |
| Hydrogen Peroxide |
0-1.5 |
DPD Tablets |
(2) |
100 |
3662-SC |
$40.00 |
| Iron |
0-5.0 |
Bipyridyl |
(2) |
50 |
3648-SC |
38.00 |
| Iron |
0-6 |
Phenanthroline |
(2) |
50 |
3668-SC |
$42.00 |
| Manganese (LR) |
0-0.9 |
PAN |
(3) |
50 |
3658-SC |
59.00 |
| Manganese (HR) |
0-10.0 |
Periodate |
(2) |
50 |
3669-SC |
$79.00 |
| Molybdenum |
0-30 |
Thioglycolate |
(3) |
50 |
3699-01-SC |
58.00 |
| Nickel |
0-10.0 |
Dimethylglyoxime |
(6) |
50 |
3663-SC |
$105.00 |
| Nitrate Nitrogen |
0-3.0 |
Cadmium Reduction |
(2) |
20 |
3649-01-SC |
$44.00 |
| Nitrite Nitrogen |
0-0.7 |
Diazotization/Coupling |
(2) |
20 |
3650-SC |
$43.00 |
| Oxygen, Dissolved |
0-12.5 |
Winkler Colorimetric |
(3) |
200 |
3688-SC |
$44.00 |
| Ozone |
0-0.4 |
Indigo Trisulfonate |
(3) |
100 |
3651-SC |
216.00 |
| pH |
5-9.5 |
Colorimetric |
(3) |
100 |
3700-SC |
$52.00 |
| Phenols |
0-6.0 |
4-Aminoantipyrine |
(3) |
50 |
3652-SC |
$53.00 |
| Phosphate (HR) |
0-80.0 |
Molybdovanadate |
(1) |
50 |
3655-SC |
$24.00 |
| Phosphate (LR) |
0-3.0 |
Ascorbic Acid Reduction |
(3) |
50 |
3653-SC |
$37.00 |
| Potassium |
1-10.0 |
Tetraphenylboron |
(2) |
100 |
3639-SC |
$55.00 |
| Silica (LR) |
0-4.0 |
Heteropoly Blue |
(4) |
100 |
3664-SC |
$52.00 |
| Silica (HR) |
0-75 |
Silicomolybdate |
-- |
50 |
3687-SC |
$39.00 |
| Sulfate |
0-100 |
Barium Chloride |
(1) |
100 |
3665-SC |
$27.00 |
| Sulfide |
0-3.0 |
Methylene Blue |
(3) |
50 |
3654-SC |
$61.00 |
| Turbidity |
0-400 |
Absorptimetric |
-- |
Unlimited |
-- |
-- |
| Zinc |
0-3 |
Zincon |
(6) |
50 |
3667-SC |
$105.00 |
|
|
PORTABLE TURBIDITY METER:
The newly redesigned 2020e combines an advanced microprocessor with a patent-pending optical chamber resulting
in higher accuracy and a wider range.
The multi-detector optical configuration assures long term stability and minimizes stray light and
color interferences. All readings are determined by the process of signal averaging over a 5 second period.
This minimizes fluctuations in readings attributed to large particles and results in rapid, highly
repeatable measurements. Ideally suited for both low-level drinking water applications as well as
monitoring high turbidity in the field.
2020e version meets USEPA design criteria as specified by USEPA method 180.1.
Kits are supplied with 0, 1, and 10 NTU standard, sample bottle, four sample tubes, hard shelled carrying case, and
an extra battery. AC power adapter is optional.
|
Range:
|
0-4000 NTU
|
|
Resolution:
|
0.01 NTU/FNU 0.00-10.99, 0.1 NTU/FNU 11.00-109.9, 1 NTU/FNU 110-4000
|
|
Accuracy:
|
±2% 0-100 NTU, ±3% above 100 NTU
|
|
Serial Interface:
|
RS-232
|
|
Power:
|
9V alkaline battery (included)
120v/60Hz adapter (optional)
|
|
Size:
|
8.5 x 16.2 x 6.7cm (3-3/8 x 6-3/8 x 2-5/8 inches)
|
2020e Features:
• Patent pending optical design features focusing optics for low level precision and accuracy.
• MSP430 Microcontroller used is the most advanced controller on the market for hand held applications.
• Advanced calibration algorithms.
• Tube positioning ring limits vial variability.
• Easy menu driven operation and large LCD display.
• 4000 point data log, stored results can be viewed directly on instrument or downloaded to a
computer via RS232 cable.
• LaMotte 2020e Turbidity Meter Owners Manual
• Turbidity Meter Troubleshooting Guide
• AMCO Turbidity Standards, ISO 7027 Certificate of Compliance
| #1979-EPA: |
Model 2020e Turbidity Meter |
$875.00 |
| #1754: |
Optional AC Adapter |
$41.00 |
| #1480: |
Turbidity Standard, 0 NTU, 60 ml |
$32.00 |
| #1484: |
Turbidity Standard, 1.0 NTU, 60 ml |
$51.00 |
| #1485: |
Turbidity Standard, 10.0 NTU, 60 ml |
$51.00 |
| #0475: |
Replacement Turbidity Tubes, Pkg of 6 |
$28.00 |
| #0286: |
Old-Style Turbidity Tubes, Pkg of 4 |
$28.00 |
|
