TEMPERATURE DATA LOGGERS
• Original Tidbit Temperature Data Loggers
• Version 2 Tidbit Temperature Data Loggers
• Hobo Temperature Data Loggers
|
TidbiT v2 Temperature Data Logger
The TidbiT v2 family data loggers has 12-bit resolution and a precision sensor
with high accuracy over a wide temperature range. This new version of the popular
underwater logger has twice the memory, an Optic USB Base Station, and works with the
new HOBO Waterproof Shuttle. The rugged TidbiT is waterproof to 300m (1000ft) and is
equipped with an optic interface for data offload in th field, even when wet.
Requires either the HOBO Waterproof Shuttle or Universal Optic USB Base Station.
You will also need the HOBOware Pro Software or HOBOware Lite Software.
• Enough memory to record more than 42,000 12-bit measurements
• Waterproof to 300m (1000ft)
• Time accuracy: +/-1 minute per month
• High-speed optic USB interface offloads full logger <30 seconds
• Programmable start time/date
• User-selectable sampling interval: 1 second to 18 hours
• Battery level indication at launch
• Battery lasts 5 years (typical); temperature extremes will reduce battery life
• Non-volatile EEPROM memory retains measurements even if battery fails
• Blinking LED confirms operation
• Protective boot for added protection
Download Specification and Instructions for TidbiT v2
| #UTBI-001: |
TidbiT v2 Temperature Data Logger |
$169.00 |
|
|
TIDBIT PROTECTIVE BOOT:
The optional TidbiT thermoplastic elastometer boot provides cushioning for use in harsh conditions - offered in white to
minimize solar radiation absorption and also offered in black to minimize underwater visibility
| #BOOT-TIDBIT-WH-1: |
TidbiT Boot White, Each |
$6.50 |
| #BOOT-TIDBIT-WH-5: |
TidbiT Boot White, Pkg of 5 |
$29.00 |
| #BOOT-TIDBIT-BK-1: |
TidbiT Boot Black, Each |
$6.50 |
| #BOOT-TIDBIT-BK-5: |
TidbiT Boot Black, Pkg of 5 |
$29.00 |
|
|

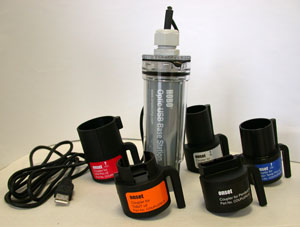

Universal Optic USB Base Station:
The new Universal Optic USB Base Station and a series of couplers are used to offload data from any
HOBO® data logger with an Optic USB interface. The Optic USB Base Station connects to your computer
via USB, while connecting to the logger via an appropriate coupler.
Features
• Offloads a full 64K logger in 30 seconds
• Optical interface to logger eliminates unreliable connectors
• Base station is splash-proof (connectionx to computer is not)
• Couplers are color-coded to loggers
• Easy USB connection to computer
• Operating Temperature Range: 0 to 50 °C (32 to 122 °F)
Specifications
Dimensions (without adapters): 15.2 cm x 4.8 cm ( 6.0 in x 1.9 in)
Weight: 153g (5.3 oz)
| #BASE-U-4 |
Universal Optic USB Base Station |
$169.00 |
|
|

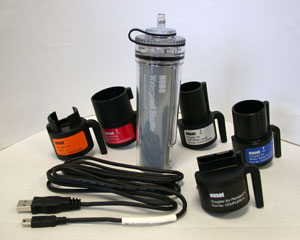

HOBO Waterproof Shuttle:
The HOBO® Waterproof Shuttle provides convenient readout and relaunching of underwater and outdoor HOBO
loggers with an Optic USB interface, and is waterproof to 20m (66ft). The HOBO Waterproof Shuttle can
also be used as a base station.
Features
• Allows for data readout under water while diving or snorkeling
• Rugged waterproof construction
• LEDs show offload and relaunch status
• Convenient direct USB connection to host computer
• Checks and indicates its own battery status
• Synchronizes data logger clocks
• Synchronizes relaunch: sets data logger sample times to be synchronized with prior launch sample times
• Can also be used as an Optic USB base station for loggers with an Optic USB interface
Specifications
Memory: 4 MB non-volatile memory stores data from 63 loggers
Operating temperature range while communicating:
0 to 50 °C (32 °F to 122 °F)
Survival temperature:
-20 °C to 50 °C (-4 °F to 122 °F)
Rating:
Waterproof to 20m (66ft)
Clock accuracy:
+/-1 minute/month at 25 °C (77 °F)
Logger offload speed (into shuttle):
approximately 15 seconds for 64K
Shuttle to host computer offload:
approximately 6 minutes for 4MB
Batteries:
two AA batteries (user-replaceable)
Battery life:
1 year or approximately 200 complete memory fills, typical
Case materials:
Polycarbonate, EPDM Rubber O-rings
| #U-DTW-1: |
HOBO Waterproof Shuttle |
$299.00 |
|
|
HOBOware Pro Software:
HOBOware Pro for Windows or Mac is part of Onsets next generation of software for logger management,
data graphing, data analysis, and data export.
Data Assistants and Real-Time Alarm Plug-ins provide advance data analysis and monitor/notification of
out-of-range conditions. Supports 21 CFR Part 11 compliance.
| #BHW-PC: |
HOBOware Pro Software for Windows, Version 2.3.0 |
$149.00 |
| #BHW-MAC: |
HOBOware Pro Software for Mac, Version 2.3.0 |
$149.00 |
|
|
HOBOware Lite Software:
HOBOware Lite is entry-level software for HOBO USB loggers, offering easy logger launch, readout,
and data plotting. It is ideal for users looking to save money and who don't need all the
features of HOBOware Pro. Includes both PC and Mac versions of the installer, and a USB
interface cable for connecting loggers with a direct USB interface. HOBOware Lite does not
support any of Onset's data shuttles.
| #BHW-LITE: |
HOBOware Lite Software, Version 2.3.0 |
$59.00 |
|
